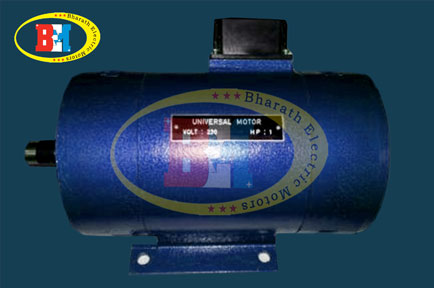

AC/DC Universal Motor

Universal  for Electrical Lab - For demonstrating to students the complete know of the Basics, Components, Starting methods, Speed-Torque, Wear & Tear & Maintenance of these motors I packaged in small rating. Students can make connections of their own with the help of the terminations provided for study of features viz Starting methods, Speed-Torque, Effect of reduced voltage, Blocked rotor test.

Technical Specs

• Power ratings available : 350W / 750W
• Voltage Input: 230V AC 50hz or 230 DC
• RPM: 6000 / 10000 Single / Double shaft extension, SPDP, IP23, IC01, B3, Class-B Short time duty, Solid yoke. List Of Experiments : Starting by AC DOL Starter Starting by reduced AC voltage starter. Starting by DC Starter Speed control by DC SCR Drive Load test & No load test of machine
