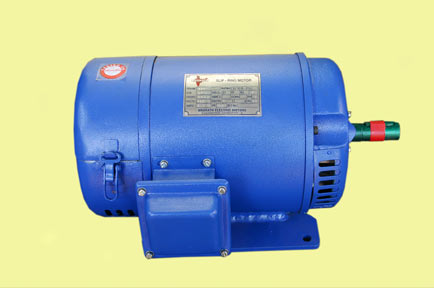

AC Slipring Motor

Slip ring motor for electric lab – This model is an educational model suitable for demonstrating to students the complete know of the basics. Components, starting methods, speed-torque behavior, wear & tear & maintance of these motors packed in small rating. Students can make connections of their own with the help of the terminals provided for study of feature viz starting methods, speed control, speed-Torque, Effect of resistance in rotor, Effect of single phasing, Effect of voltage imbalance operation, Blocked rotor test.

Technical Specs

Power rating available: 350W / 750W / 1KW / 2KW / 3KW / 5KW
Voltage input: 440V AC 50 Hz
RPM: 1400 / 2880 RPM Single / Double shaft extension, TEFC, IP44, IC01, B3, Class – B, S1

Casting body list of experiments starting by DOL starter starting by reduced voltage starter, speed variation by rotor resistance speed control by VVVF method load test & No load test of machine speed-Torque Analysis voltage-speed analysis speed reversal efficiency analysis blocked rotor test cold resistance & hot resistance motor.
